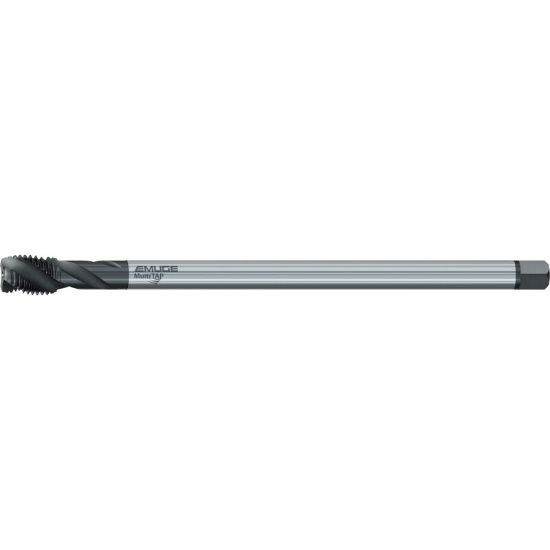

EMUGE C5863200.0100 Tap Mod Bottom M10-1.50MM 6H Metric DIN/DIN HSSE Oxide + TiN

ISO: C5863200.0100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC5863200.0100
Delivery date: 3-5 days
$158.52

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating Oxide + TiN
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Size M10
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Pitch 1.50MM
Tool Material Steel
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Thread Limit 6H
Overall Len 7.8740 200.00MM
Tap Square 0.2860
Length Type Long
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
