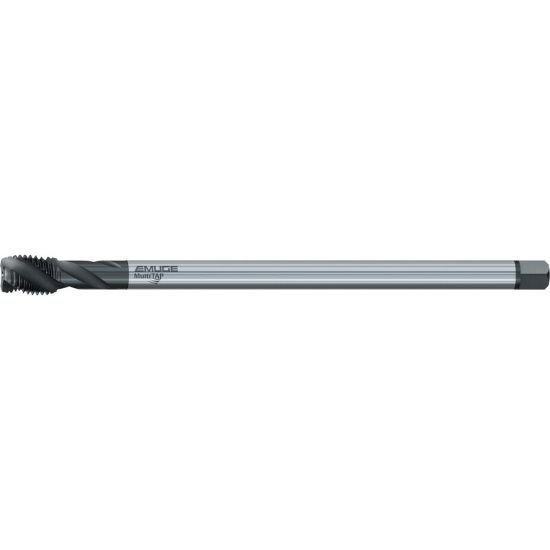

Picture of Emuge C5863200.0116 Tap Mod Bottom M16-2.00mm 6H Metric DIN/DIn HSSE Oxide + TiN Pulley Long

Emuge C5863200.0116 Tap Mod Bottom M16-2.00mm 6H Metric DIN/DIn HSSE Oxide + TiN Pulley Long

Part Number: EMUC5863200.0116 ISO: C5863200.0116
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$229.41
SKU: 1157690

Description

EMUGE C5863200.0116 M16x2.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 6H Metric Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 8.8189 224.00MM
Shank/Pilot Dia 0.4720 11.99MM
Flutes/Inserts 3
Thread Pitch 2.00MM
Thread Size M16
Tap Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Tap Square 0.3600
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Oxide + TiN
Standards & Identification
Dimension Standard DIN/DIN
