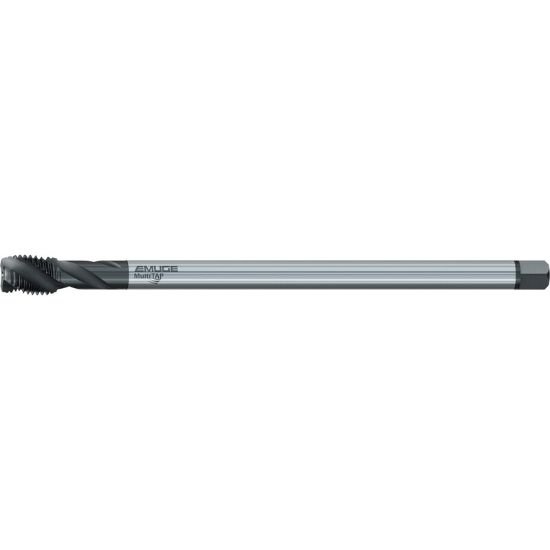

Picture of Emuge C5863200.0100 Tap Mod Bottom M10-1.50mm 6H Metric DIN/DIn HSSE Oxide + TiN Pulley Long

Emuge C5863200.0100 Tap Mod Bottom M10-1.50mm 6H Metric DIN/DIn HSSE Oxide + TiN Pulley Long

Part Number: EMUC5863200.0100 ISO: C5863200.0100
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$186.45
SKU: 1157687

Description

EMUGE C5863200.0100 M10x1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 6H Metric Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 7.8740 200.00MM
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Thread Pitch 1.50MM
Thread Size M10
Tap Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Square 0.2860
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Oxide + TiN
Standards & Identification
Dimension Standard DIN/DIN
