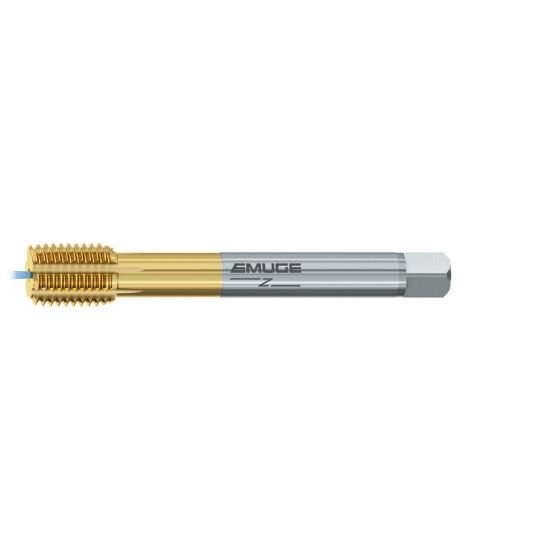

Picture of Emuge C531Z700.0112 Tap M12-1.75mm Bottoming Metric DIN/DIn 1.5P-2.0P Coolant HSSE-Powder Metal TiN

Emuge C531Z700.0112 Tap M12-1.75mm Bottoming Metric DIN/DIn 1.5P-2.0P Coolant HSSE-Powder Metal TiN

Part Number: EMUC531Z700.0112 ISO: C531Z700.0112

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157332
Vendor: Sussex Tool and Supply
$253.67
EMUGE C531Z700.0112 M12x1.75MM Roll Form Bottoming 1.5P-2.0P HSSE-PM TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 4.3307 110.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3540 8.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.75MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M12
Thread Limit 6H
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.4374 11.11MM - 0.4469 11.35MM
Tap Square 0.2750
Tap Chamfer 1.5P-2.0P
