  • EMUGE C523Z700.4037 Tap 3/8-19.00TPI Pipe Whitworth DIN/DIN 2.0P-3.0P Coolant Carbide HSSE-Powder Metal TiN

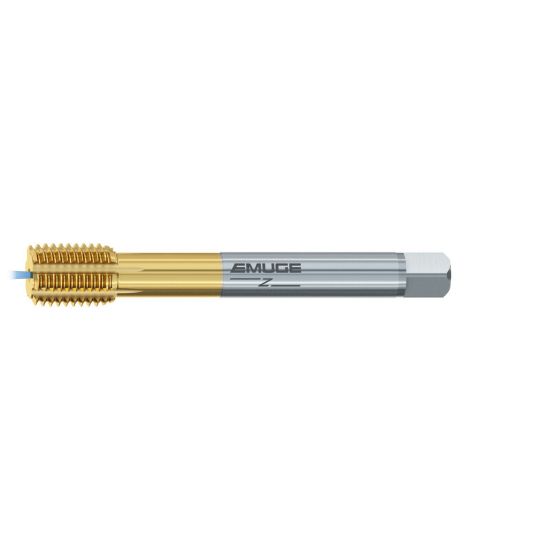

Picture of EMUGE C523Z700.4037 Tap 3/8-19.00TPI Pipe Whitworth DIN/DIN 2.0P-3.0P Coolant Carbide HSSE-Powder Metal TiN

EMUGE C523Z700.4037 Tap 3/8-19.00TPI Pipe Whitworth DIN/DIN 2.0P-3.0P Coolant Carbide HSSE-Powder Metal TiN

ISO: C523Z700.4037

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC523Z700.4037
Delivery date: 3-5 days
$377.71

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Roll Form Tapping, Tapping, Pipe Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating TiN
Dimensional Specifications
Overall Len 3.9370 100.00MM
Length Type Standard
Shank/Pilot Dia 0.4720 11.99MM
Dimension Standard DIN/DIN
Thread Limit PIPE
Thread Type Whitworth
Tap Chamfer 2.0P-3.0P
Thread Size 3/8"
Drill Range 0.6319 16.05MM
Tap Style Roll Form
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Type Pipe
Flute Direction STRAIGHT
Thread Pitch 19.00TPI
Tool Material Steel
Tap Square 0.3540
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Energy Yes
Job Shop Yes
