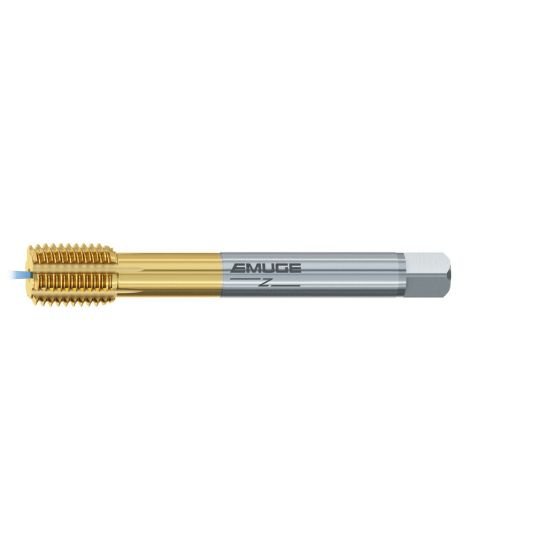

Picture of Emuge C523Z700.4035 Tap 1/8-28.00TPI Pipe Whitworth DIN/DIn 2.0P-3.0P Coolant HSSE-Powder Metal TiN

Emuge C523Z700.4035 Tap 1/8-28.00TPI Pipe Whitworth DIN/DIn 2.0P-3.0P Coolant HSSE-Powder Metal TiN

Part Number: EMUC523Z700.4035 ISO: C523Z700.4035

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157204
Vendor: Sussex Tool and Supply
$236.76
EMUGE C523Z700.4035 1/8"x28.00TPI Roll Form Pipe 2.0P-3.0P HSSE-PM TiN PIPE Whitworth Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TIN
Overall Length 3.5433 90.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2750 6.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 28.00TPI
Thread Type Whitworth
Flute Direction STRAIGHT
Thread Size 1/8"
Thread Limit PIPE
Tap Style Roll Form
Tap Type Pipe
Dimension Standard DIN/DIN
Tap Drill Range 0.3642 9.25MM
Tap Square 0.2160
Tap Chamfer 2.0P-3.0P
