  • EMUGE C523W700.0120 Tap Mod Bottom M20-2.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

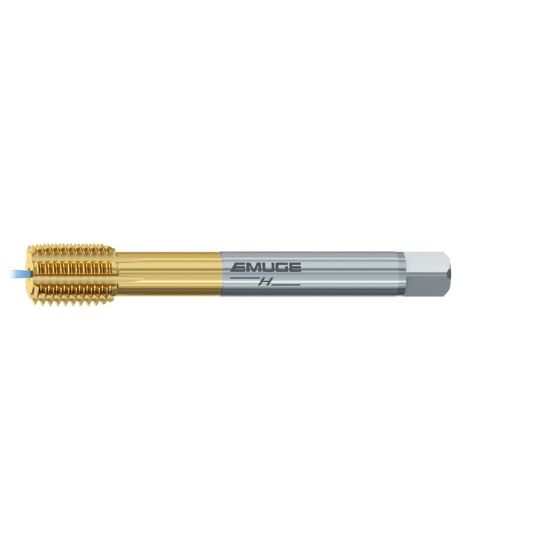

Picture of EMUGE C523W700.0120 Tap Mod Bottom M20-2.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE C523W700.0120 Tap Mod Bottom M20-2.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: C523W700.0120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC523W700.0120
Delivery date: 3-5 days
$488.76

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Application Tapping, Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Tool Material Steel
Drill Range 0.7372 18.72MM - 0.7506 19.07MM
Length Type Standard
Tap Style Roll Form
Thread Limit 6H
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.6290 15.98MM
Tap Chamfer 2.0P-3.0P
Thread Pitch 2.50MM
Thread Type Metric
Overall Len 5.5118 140.00MM
Machine Side Connection Type Tap Collet
Tap Square 0.4720
Tap Type Mod Bottom
Thread Size M20
Flute Direction STRAIGHT
Dimension Standard DIN/DIN
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
