  • EMUGE C521W700.0116 Tap Mod Bottom M16-2.00MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

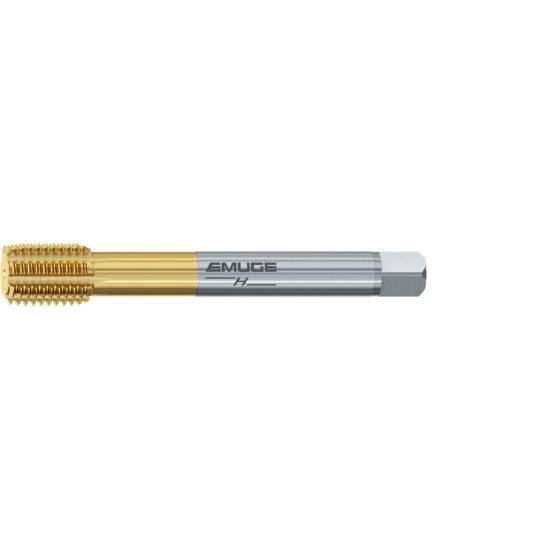

Picture of EMUGE C521W700.0116 Tap Mod Bottom M16-2.00MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

EMUGE C521W700.0116 Tap Mod Bottom M16-2.00MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

ISO: C521W700.0116

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC521W700.0116
Delivery date: 3-5 days
$356.75

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Roll Form Tapping, Mod Bottom Tapping, Tapping, Blind Hole Tapping
Coating TiN
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Size M16
Length Type Standard
Tap Style Roll Form
Tool Material Steel
Dimension Standard DIN/DIN
Tap Square 0.3540
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 2.00MM
Flute Direction STRAIGHT
Drill Range 0.5898 14.98MM - 0.6004 15.25MM
Thread Type Metric
Shank/Pilot Dia 0.4720 11.99MM
Thread Limit 6H
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Overall Len 4.3307 110.00MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
