  • EMUGE C521W700.0112 Tap Mod Bottom M12-1.75MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

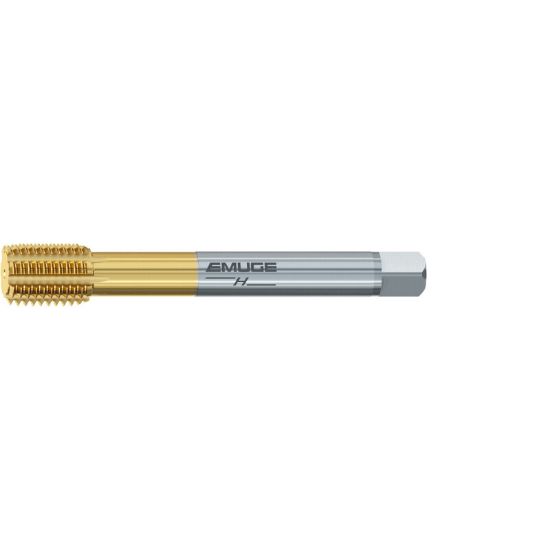

Picture of EMUGE C521W700.0112 Tap Mod Bottom M12-1.75MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

EMUGE C521W700.0112 Tap Mod Bottom M12-1.75MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

ISO: C521W700.0112

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC521W700.0112
Delivery date: 3-5 days
$166.66

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping, Tapping
Made In USA No
Shipping State Massachusetts
Package Size 1
Coating TiN
Performance Rating High Performance
Dimensional Specifications
Thread Size M12
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Thread Pitch 1.75MM
Flute Direction STRAIGHT
Thread Type Metric
Length Type Standard
Tool Material Steel
Drill Range 0.4374 11.11MM - 0.4469 11.35MM
Thread Limit 6H
Overall Len 4.3307 110.00MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
