  • EMUGE C438J401.0114 Tap M14-2.00MM Mod Bottom Metric DIN/DIN 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

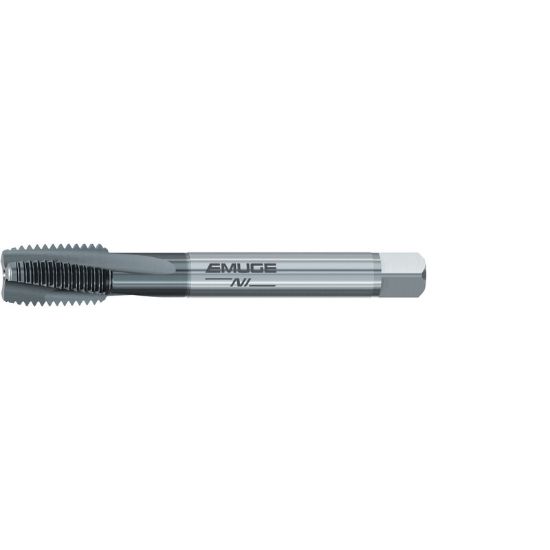

Picture of EMUGE C438J401.0114 Tap M14-2.00MM Mod Bottom Metric DIN/DIN 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

EMUGE C438J401.0114 Tap M14-2.00MM Mod Bottom Metric DIN/DIN 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

ISO: C438J401.0114

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC438J401.0114
Delivery date: 3-5 days
$237.34

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Mod Bottom Tapping, Tapping
Performance Rating High Performance
Made In USA No
Package Size 1
Coating TiCN
Shipping State Massachusetts
Dimensional Specifications
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tool Material Steel
Thread Size M14
Flute Direction R - Right
Length Type Standard
Thread Pitch 2.00MM
Cut Rating High Temp, Inconel, Titanium
Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Machine Side Connection Type Tap Collet
Tap Square 0.3220
Overall Len 4.3307 110.00MM
Tap Chamfer 2.0P-3.0P
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Type Metric
Shank/Pilot Dia 0.4330 11.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
