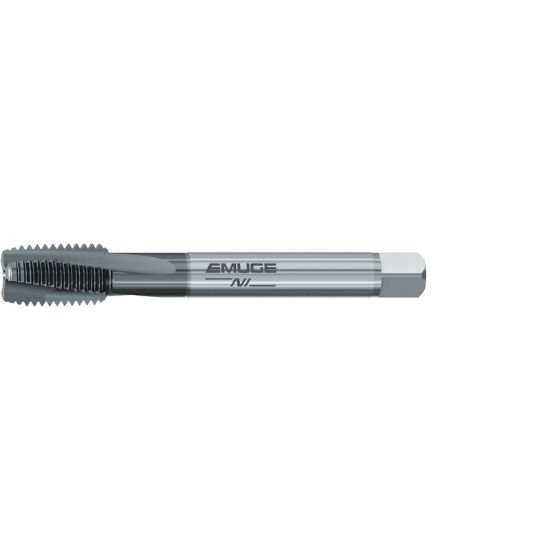

Picture of Emuge C438J401.0120 Tap M20-2.50mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

Emuge C438J401.0120 Tap M20-2.50mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

Part Number: EMUC438J401.0120 ISO: C438J401.0120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157809
Vendor: Sussex Tool and Supply
$390.47
EMUGE C438J401.0120 M20x2.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating TICN
Overall Length 5.5118 140.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6290 15.98MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M20
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Tap Square 0.4890
Tap Chamfer 2.0P-3.0P
