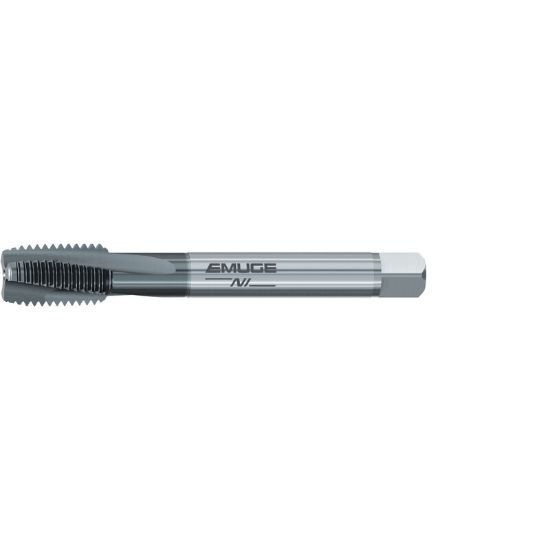

Picture of Emuge C438J401.0114 Tap M14-2.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

Emuge C438J401.0114 Tap M14-2.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

Part Number: EMUC438J401.0114 ISO: C438J401.0114

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157807
Vendor: Sussex Tool and Supply
$241.59
EMUGE C438J401.0114 M14x2.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating TICN
Overall Length 4.3307 110.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4330 11.00MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M14
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Tap Square 0.3220
Tap Chamfer 2.0P-3.0P
