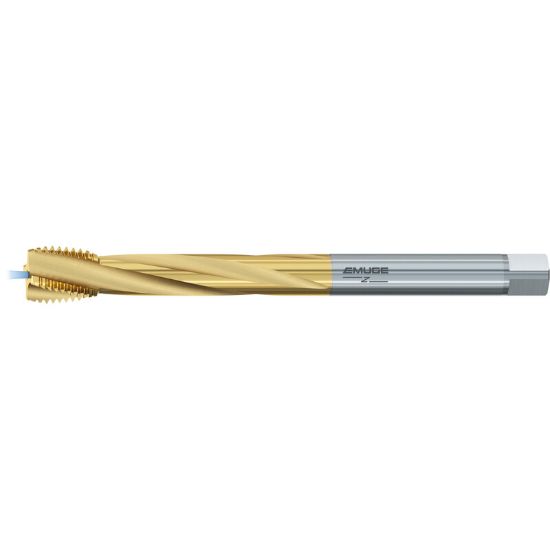

EMUGE C4283701.0491 Tap Mod Bottom M30-2.00MM 6H Metric DIN/DIN Coolant HSSE TiN

ISO: C4283701.0491

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC4283701.0491
Delivery date: 3-5 days
$749.64

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Size M30
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 1.0992 27.92MM - 1.1197 28.44MM
Length Type Long
Tap Chamfer 2.0P-3.0P
Tap Square 0.7660
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.8661 22.00MM
Thread Pitch 2.00MM
Thread Type Metric
Overall Len 10.6299 270.00MM
Flute Direction R - Right
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
