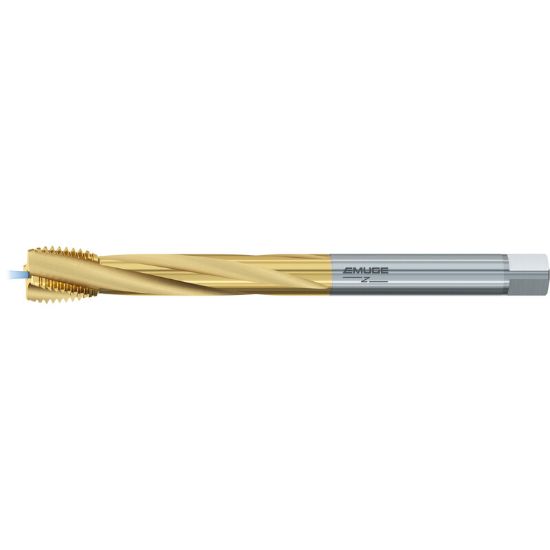

EMUGE C4283701.0142 Tap Mod Bottom M42-4.50MM 6H Metric DIN/DIN Coolant HSSE TiN

ISO: C4283701.0142

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC4283701.0142
Delivery date: 3-5 days
$1,709.61

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Length Type Long
Thread Type Metric
Thread Size M42
Dimension Standard DIN/DIN
Overall Len 13.3858 340.00MM
Tool Material Steel
Thread Pitch 4.50MM
Drill Range 1.4693 37.32MM - 1.5154 38.49MM
Shank/Pilot Dia 1.2590 31.98MM
Tap Square 0.9440
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
