  • EMUGE C4253701.0114 Tap Mod Bottom M14-2.00MM 6H Metric DIN/DIN Coolant HSSE TiN

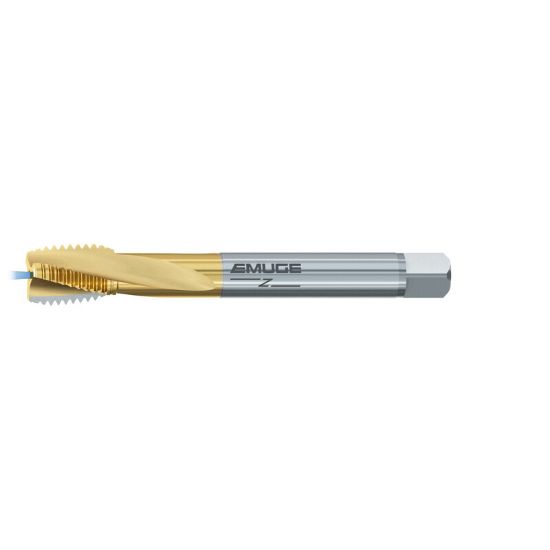

Picture of EMUGE C4253701.0114 Tap Mod Bottom M14-2.00MM 6H Metric DIN/DIN Coolant HSSE TiN

EMUGE C4253701.0114 Tap Mod Bottom M14-2.00MM 6H Metric DIN/DIN Coolant HSSE TiN

ISO: C4253701.0114

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC4253701.0114
Delivery date: 3-5 days
$172.90

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Shank/Pilot Dia 0.4330 11.00MM
Thread Pitch 2.00MM
Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Tap Square 0.3220
Thread Size M14
Tool Material Steel
Overall Len 3.9370 100.00MM
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Dimension Standard DIN/DIN
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
