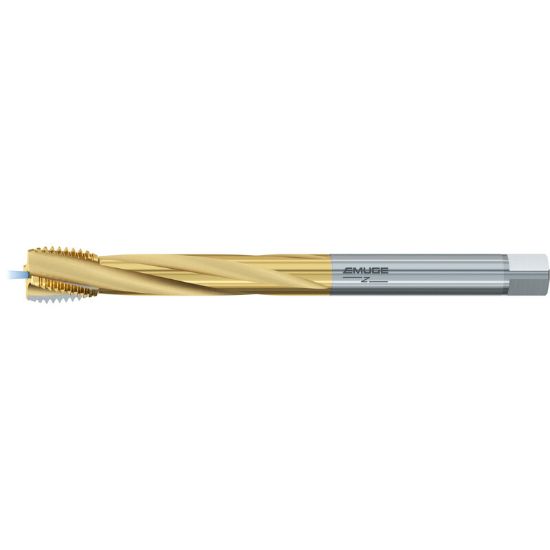

EMUGE C4063701.0534 Tap Mod Bottom M36-3.00MM 6H Metric DIN/DIN Coolant HSSE TiN

ISO: C4063701.0534

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC4063701.0534
Delivery date: 3-5 days
$1,050.08

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating High Performance
Coating TiN
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Type Metric
Shank/Pilot Dia 1.1024 28.00MM
Machine Side Connection Type Tap Collet
Overall Len 12.2047 310.00MM
Thread Pitch 3.00MM
Tool Material Steel
Tap Square 0.9250
Flute Direction R - Right
Drill Range 1.2945 32.88MM - 1.3252 33.66MM
Thread Size M36
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
