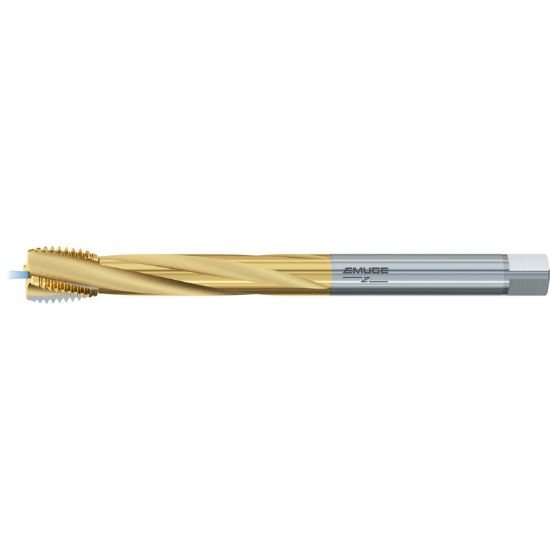

EMUGE C4063701.0136 Tap Mod Bottom M36-4.00MM 6H Metric DIN/DIN Coolant HSSE TiN

ISO: C4063701.0136

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC4063701.0136
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating TiN
Performance Rating High Performance
Dimensional Specifications
Thread Size M36
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Tap Square 0.9250
Tool Material Steel
Machine Side Connection Type Tap Collet
Overall Len 12.2047 310.00MM
Tap Type Mod Bottom
Thread Type Metric
Dimension Standard DIN/DIN
Drill Range 1.2535 31.84MM - 1.2945 32.88MM
Thread Pitch 4.00MM
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
