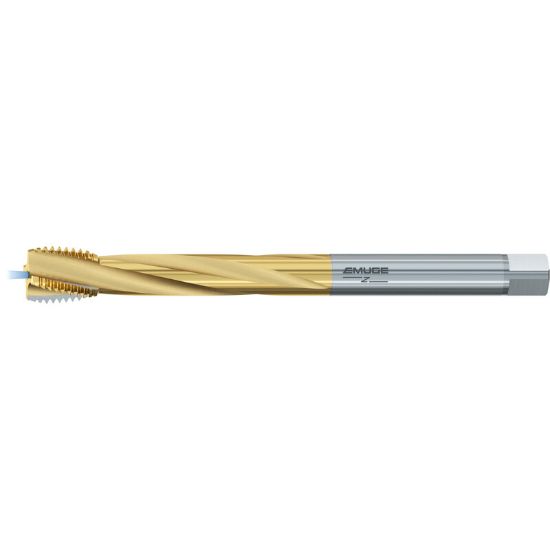

EMUGE C4063701.0124 Tap Mod Bottom M24-3.00MM 6H Metric DIN/DIN Coolant HSSE TiN

ISO: C4063701.0124

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC4063701.0124
Delivery date: 3-5 days
$688.16

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.7080 17.98MM
Tool Material Steel
Drill Range 0.8087 20.54MM - 0.8201 20.83MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Thread Size M24
Thread Pitch 3.00MM
Flute Direction R - Right
Overall Len 9.4488 240.00MM
Tap Square 0.5700
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
