  • EMUGE C3650F01.0422 Tap Mod Bottom M20-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

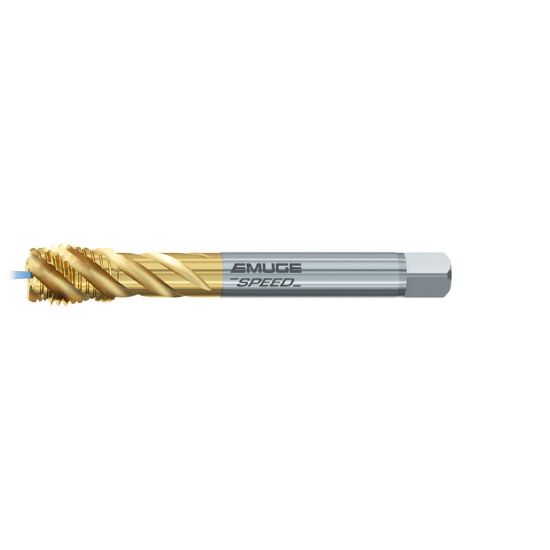

Picture of EMUGE C3650F01.0422 Tap Mod Bottom M20-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE C3650F01.0422 Tap Mod Bottom M20-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: C3650F01.0422

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3650F01.0422
Delivery date: 3-5 days
$313.98

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Mod Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.6290 15.98MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Length Type Standard
Thread Type Metric
Tap Square 0.4890
Thread Pitch 1.50MM
Tool Material Steel
Dimension Standard DIN/DIN
Overall Len 4.9213 125.00MM
Thread Size M20
Drill Range 0.7299 18.54MM - 0.7413 18.83MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
