  • EMUGE C3650F01.0302 Tap Mod Bottom M12-1.25MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

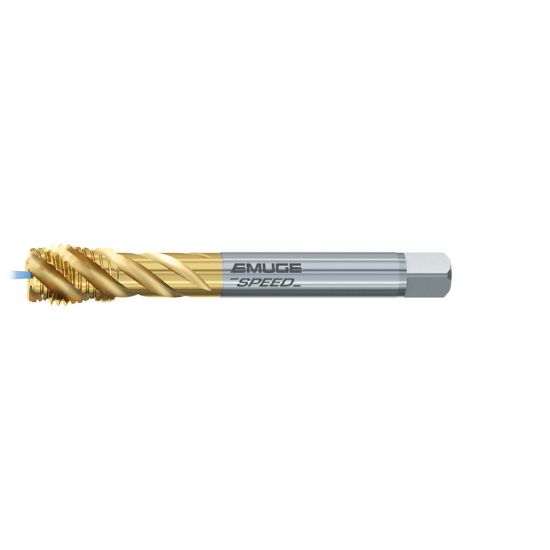

Picture of EMUGE C3650F01.0302 Tap Mod Bottom M12-1.25MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE C3650F01.0302 Tap Mod Bottom M12-1.25MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: C3650F01.0302

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3650F01.0302
Delivery date: 3-5 days
$189.74

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Tapping, Cut Tapping
Package Size 1
Made In USA No
Shipping State Massachusetts
Coating TiN
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 1.25MM
Tool Material Steel
Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Thread Type Metric
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 4.3307 110.00MM
Tap Chamfer 2.0P-3.0P
Length Type Standard
Thread Limit 6H
Tap Square 0.2750
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Machine Side Connection Type Tap Collet
Thread Size M12
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
