  • EMUGE C3650F01.0276 Tap Mod Bottom M10-1.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

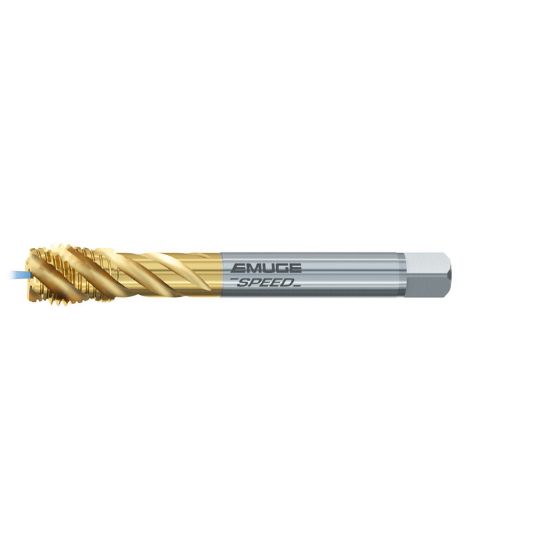

Picture of EMUGE C3650F01.0276 Tap Mod Bottom M10-1.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE C3650F01.0276 Tap Mod Bottom M10-1.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: C3650F01.0276

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3650F01.0276
Delivery date: 3-5 days
$149.33

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN
Shipping State Massachusetts
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Tool Material Steel
Dimension Standard DIN/DIN
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size M10
Thread Type Metric
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 3.5433 90.00MM
Drill Range 0.3528 8.96MM - 0.3630 9.22MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
