  • EMUGE C3650F01.0251 Tap Mod Bottom M8-1.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

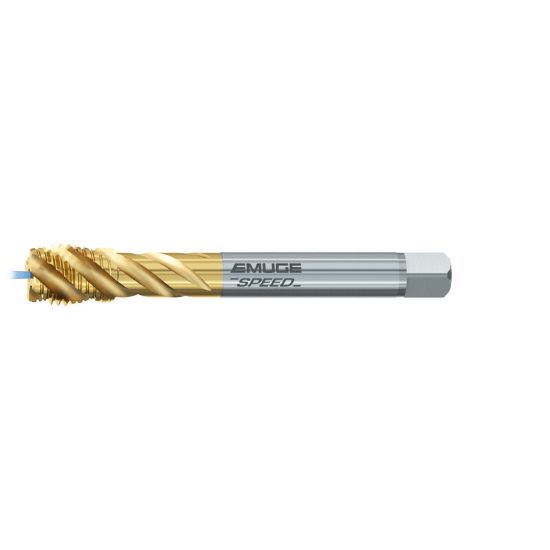

Picture of EMUGE C3650F01.0251 Tap Mod Bottom M8-1.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE C3650F01.0251 Tap Mod Bottom M8-1.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: C3650F01.0251

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3650F01.0251
Delivery date: 3-5 days
$132.74

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Mod Bottom Tapping, Tapping
Performance Rating High Performance
Coating TiN
Made In USA No
Package Size 1
Shipping State Massachusetts
Dimensional Specifications
Dimension Standard DIN/DIN
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Thread Size M8
Thread Type Metric
Tap Square 0.2380
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 0.2740 6.96MM - 0.2843 7.22MM
Tap Chamfer 2.0P-3.0P
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Overall Len 3.5433 90.00MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
