  • EMUGE C3650F01.0120 Tap Mod Bottom M20-2.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

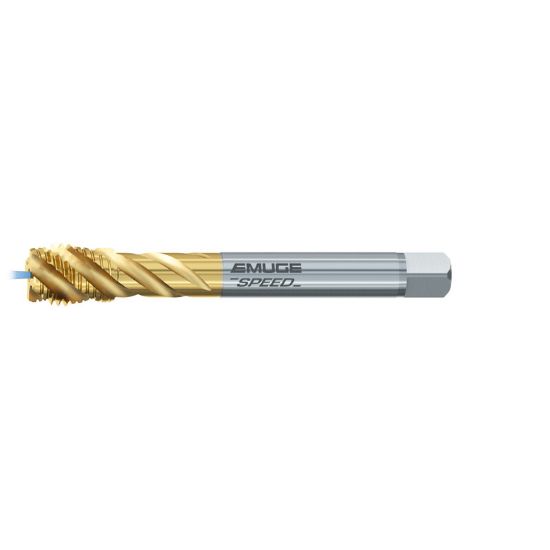

Picture of EMUGE C3650F01.0120 Tap Mod Bottom M20-2.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE C3650F01.0120 Tap Mod Bottom M20-2.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: C3650F01.0120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3650F01.0120
Delivery date: 3-5 days
$313.98

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating TiN
Made In USA No
Dimensional Specifications
Thread Size M20
Overall Len 5.5118 140.00MM
Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Dimension Standard DIN/DIN
Thread Limit 6H
Shank/Pilot Dia 0.6290 15.98MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Length Type Standard
Tool Material Steel
Thread Pitch 2.50MM
Thread Type Metric
Tap Square 0.4890
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
