  • EMUGE C3650F01.0116 Tap Mod Bottom M16-2.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

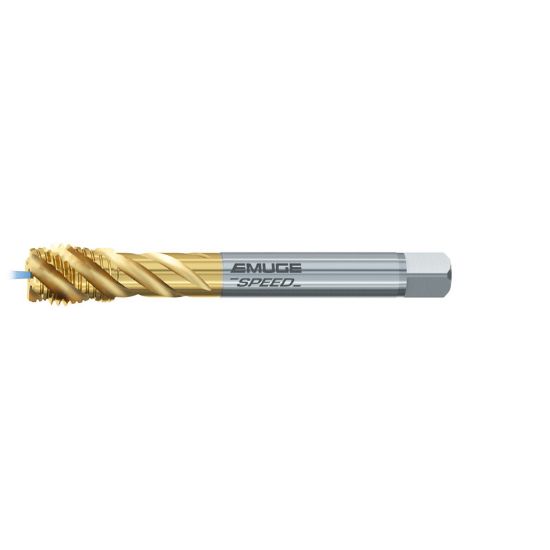

Picture of EMUGE C3650F01.0116 Tap Mod Bottom M16-2.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE C3650F01.0116 Tap Mod Bottom M16-2.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: C3650F01.0116

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3650F01.0116
Delivery date: 3-5 days
$213.20

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating TiN
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Square 0.3600
Dimension Standard DIN/DIN
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 4.3307 110.00MM
Flutes/Inserts 4
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Type Metric
Shank/Pilot Dia 0.4720 11.99MM
Thread Pitch 2.00MM
Thread Size M16
Flute Direction R - Right
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
