  • EMUGE C3600F01.0302 Tap Mod Bottom M12-1.25MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

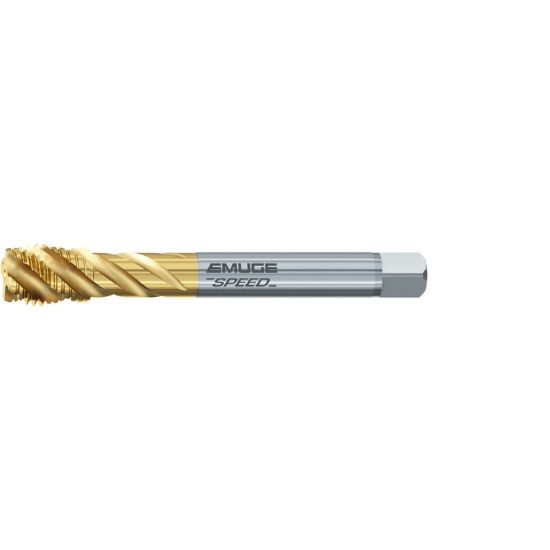

Picture of EMUGE C3600F01.0302 Tap Mod Bottom M12-1.25MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

EMUGE C3600F01.0302 Tap Mod Bottom M12-1.25MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

ISO: C3600F01.0302

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3600F01.0302
Delivery date: 3-5 days
$155.23

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Tool Material Steel
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Limit 6H
Overall Len 4.3307 110.00MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size M12
Dimension Standard DIN/DIN
Thread Type Metric
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Type Mod Bottom
Thread Pitch 1.25MM
Shank/Pilot Dia 0.3540 8.99MM
Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
