  • EMUGE C3600F01.0301 Tap Mod Bottom M12-1.00MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

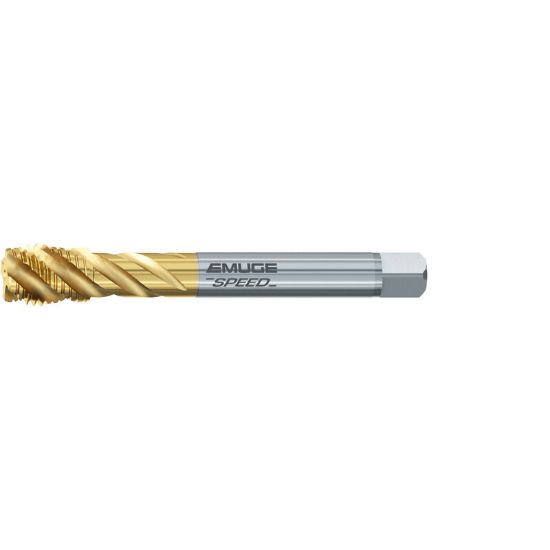

Picture of EMUGE C3600F01.0301 Tap Mod Bottom M12-1.00MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

EMUGE C3600F01.0301 Tap Mod Bottom M12-1.00MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

ISO: C3600F01.0301

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3600F01.0301
Delivery date: 3-5 days
$132.74

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Coating TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Type Metric
Tool Material Steel
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Drill Range 0.4315 10.96MM - 0.4417 11.22MM
Tap Square 0.2750
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 6H
Overall Len 4.3307 110.00MM
Tap Chamfer 2.0P-3.0P
Thread Size M12
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
