  • EMUGE C3600F01.0112 Tap Mod Bottom M12-1.75MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

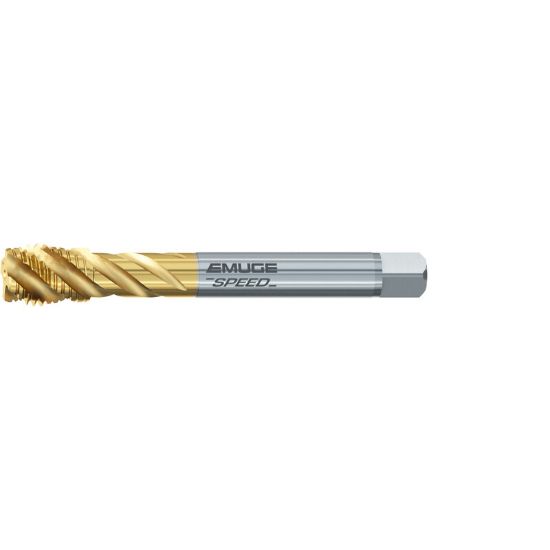

Picture of EMUGE C3600F01.0112 Tap Mod Bottom M12-1.75MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

EMUGE C3600F01.0112 Tap Mod Bottom M12-1.75MM 6H Metric DIN/DIN HSSE-Powder Metal TiN

ISO: C3600F01.0112

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3600F01.0112
Delivery date: 3-5 days
$118.23

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiN
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Size M12
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Tool Material Steel
Thread Pitch 1.75MM
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Type Mod Bottom
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 4.3307 110.00MM
Flutes/Inserts 4
Length Type Standard
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
