  • EMUGE C3258F01.0390 Tap Plug M18-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

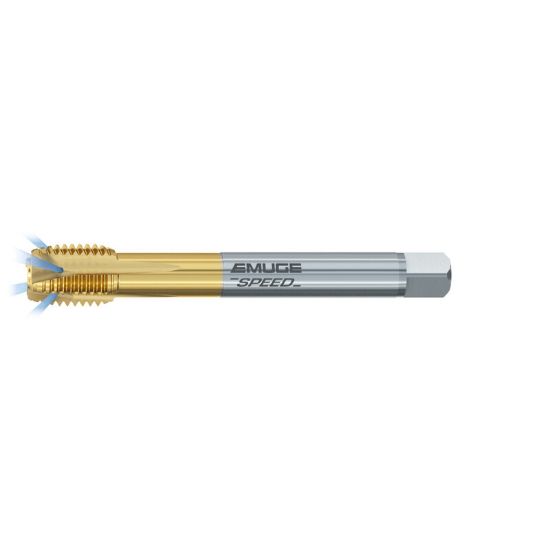

Picture of EMUGE C3258F01.0390 Tap Plug M18-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE C3258F01.0390 Tap Plug M18-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: C3258F01.0390

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3258F01.0390
Delivery date: 3-5 days
$270.54

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating TiN
Shipping State Massachusetts
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 4.3307 110.00MM
Drill Range 0.6472 16.44MM - 0.6626 16.83MM
Dimension Standard DIN/DIN
Thread Pitch 1.50MM
Tool Material Steel
Shank/Pilot Dia 0.5510 14.00MM
Tap Square 0.3600
Tap Chamfer 4P-5P
Thread Size M18
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Machine Side Connection Type Tap Collet
Thread Type Metric
Tap Type Plug
Length Type Standard
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
