  • EMUGE C3258F01.0359 Tap Plug M16-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

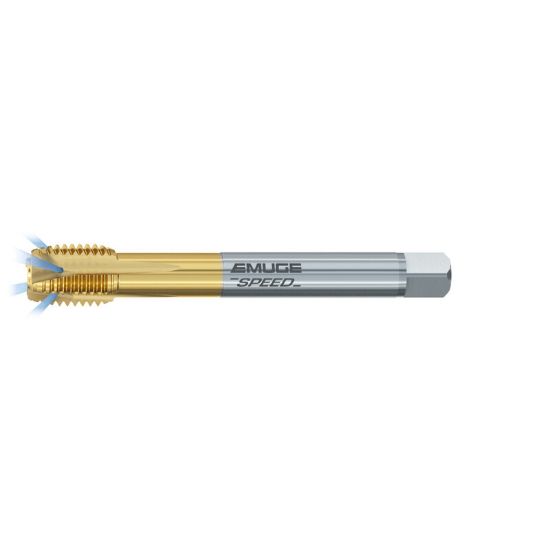

Picture of EMUGE C3258F01.0359 Tap Plug M16-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE C3258F01.0359 Tap Plug M16-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: C3258F01.0359

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3258F01.0359
Delivery date: 3-5 days
$229.75

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Coating TiN
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Square 0.3600
Tap Chamfer 4P-5P
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Thread Type Metric
Shank/Pilot Dia 0.4720 11.99MM
Dimension Standard DIN/DIN
Flute Direction STRAIGHT
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Size M16
Thread Pitch 1.50MM
Overall Len 3.9370 100.00MM
Drill Range 0.5724 14.54MM - 0.5839 14.83MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
