  • EMUGE C3258F01.0331 Tap Plug M14-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

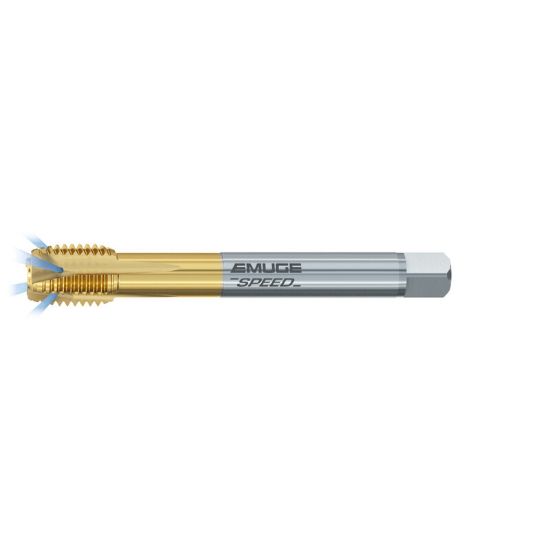

Picture of EMUGE C3258F01.0331 Tap Plug M14-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE C3258F01.0331 Tap Plug M14-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: C3258F01.0331

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3258F01.0331
Delivery date: 3-5 days
$213.06

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Thread Type Metric
Shank/Pilot Dia 0.4330 11.00MM
Dimension Standard DIN/DIN
Tap Chamfer 4P-5P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Limit 6H
Drill Range 0.4898 12.44MM - 0.5051 12.83MM
Thread Size M14
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Flute Direction STRAIGHT
Tap Square 0.3220
Tap Type Plug
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
