  • EMUGE C3258F01.0303 Tap Plug M12-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

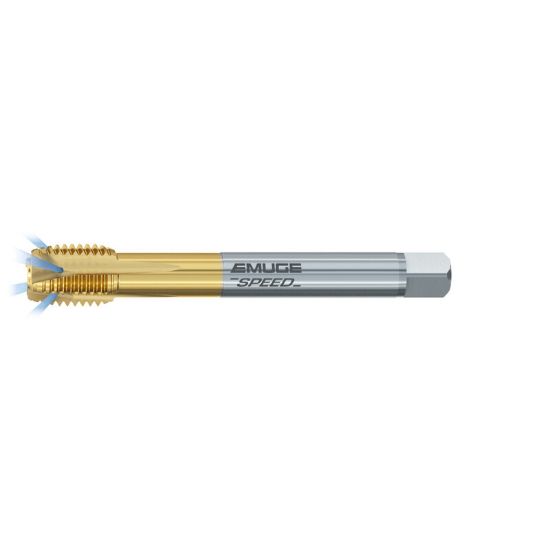

Picture of EMUGE C3258F01.0303 Tap Plug M12-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE C3258F01.0303 Tap Plug M12-1.50MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: C3258F01.0303

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3258F01.0303
Delivery date: 3-5 days
$160.89

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Style Cut Spiral Point
Thread Limit 6H
Drill Range 0.4110 10.44MM - 0.4264 10.83MM
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Type Metric
Tap Type Plug
Thread Size M12
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Tap Chamfer 4P-5P
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Flute Direction STRAIGHT
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
