  • EMUGE C3258F01.0302 Tap Plug M12-1.25MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

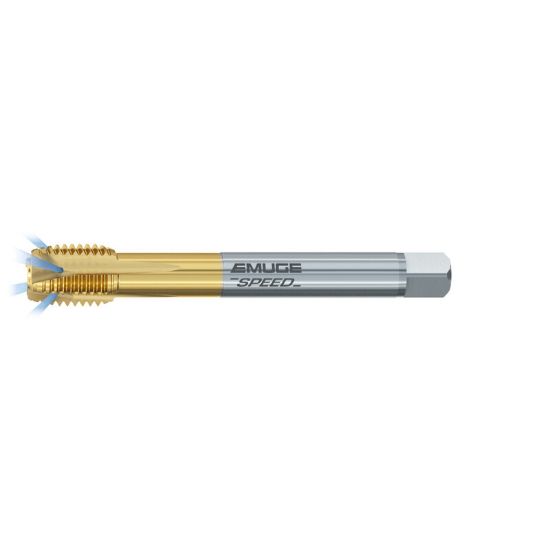

Picture of EMUGE C3258F01.0302 Tap Plug M12-1.25MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE C3258F01.0302 Tap Plug M12-1.25MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: C3258F01.0302

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3258F01.0302
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Size M12
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Tap Style Cut Spiral Point
Thread Type Metric
Tap Type Plug
Thread Pitch 1.25MM
Tool Material Steel
Tap Chamfer 4P-5P
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
