  • EMUGE C3258F01.0277 Tap Plug M10-1.25MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

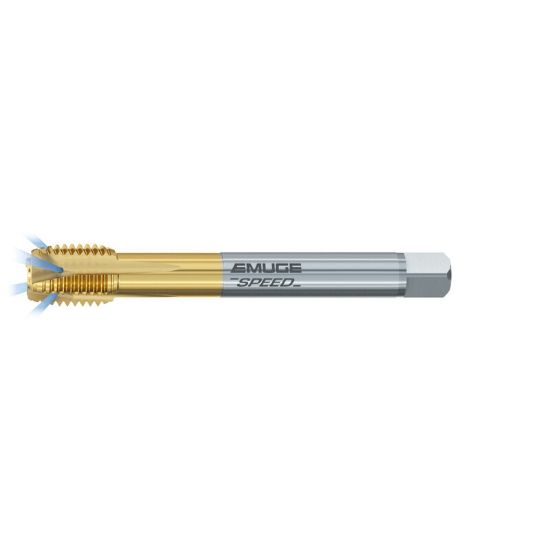

Picture of EMUGE C3258F01.0277 Tap Plug M10-1.25MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE C3258F01.0277 Tap Plug M10-1.25MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: C3258F01.0277

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3258F01.0277
Delivery date: 3-5 days
$183.34

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Coating TiN
Dimensional Specifications
Flute Direction STRAIGHT
Tap Type Plug
Thread Size M10
Thread Type Metric
Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Dimension Standard DIN/DIN
Thread Limit 6H
Tap Square 0.2860
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Thread Pitch 1.25MM
Tap Chamfer 4P-5P
Tool Material Steel
Overall Len 3.9370 100.00MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
