  • EMUGE C3258F01.0276 Tap Plug M10-1.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

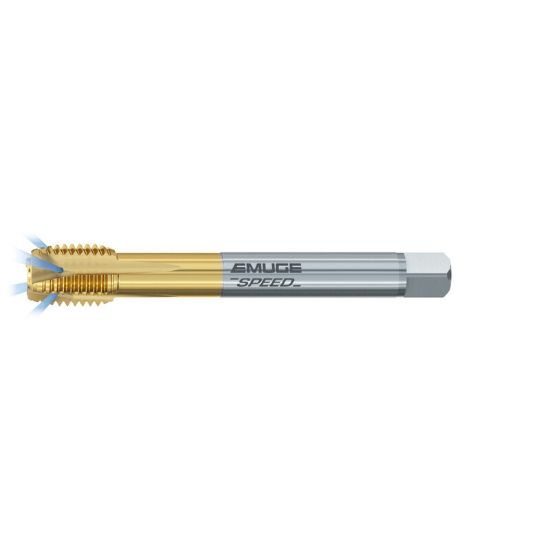

Picture of EMUGE C3258F01.0276 Tap Plug M10-1.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE C3258F01.0276 Tap Plug M10-1.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: C3258F01.0276

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3258F01.0276
Delivery date: 3-5 days
$150.37

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Thread Limit 6H
Overall Len 3.5433 90.00MM
Drill Range 0.3528 8.96MM - 0.3630 9.22MM
Tap Square 0.2860
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Tool Material Steel
Tap Chamfer 4P-5P
Flute Direction STRAIGHT
Thread Type Metric
Tap Type Plug
Dimension Standard DIN/DIN
Thread Size M10
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
