  • EMUGE C3258F01.0251 Tap Plug M8-1.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

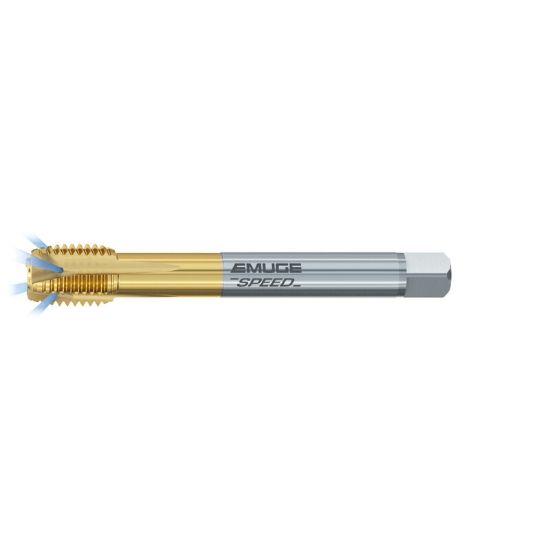

Picture of EMUGE C3258F01.0251 Tap Plug M8-1.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

EMUGE C3258F01.0251 Tap Plug M8-1.00MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiN

ISO: C3258F01.0251

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC3258F01.0251
Delivery date: 3-5 days
$149.12

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Coating TiN
Dimensional Specifications
Tool Material Steel
Tap Chamfer 4P-5P
Thread Size M8
Thread Type Metric
Tap Type Plug
Thread Limit 6H
Overall Len 3.5433 90.00MM
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 0.2740 6.96MM - 0.2843 7.22MM
Length Type Standard
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2360 5.99MM
Flute Direction STRAIGHT
Tap Square 0.2380
Tap Style Cut Spiral Point
Dimension Standard DIN/DIN
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
