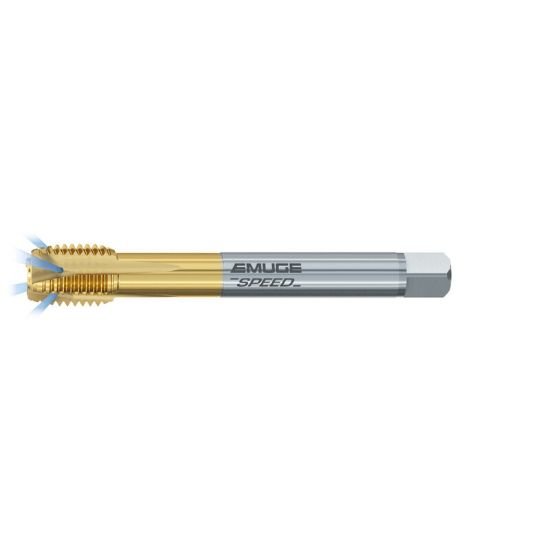

Picture of Emuge C3258F01.0359 Tap Plug M16-1.50mm 6H Metric DIN/DIn Coolant HSSE-Powder Metal TiN

Emuge C3258F01.0359 Tap Plug M16-1.50mm 6H Metric DIN/DIn Coolant HSSE-Powder Metal TiN

Part Number: EMUC3258F01.0359 ISO: C3258F01.0359
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$270.23
SKU: 1158821

Description

EMUGE C3258F01.0359 M16x1.50MM Cut Spiral Point Plug 4P-5P HSSE-PM TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.4720 11.99MM
Thread Pitch 1.50MM
Thread Size M16
Tap Drill Range 0.5724 14.54MM - 0.5839 14.83MM
Tap Square 0.3600
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TIN
Standards & Identification
Dimension Standard DIN/DIN
