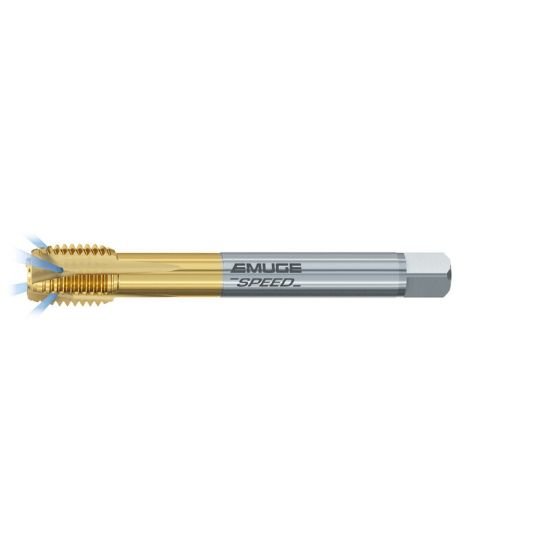

Picture of Emuge C3258F01.0331 Tap Plug M14-1.50mm 6H Metric DIN/DIn Coolant HSSE-Powder Metal TiN

Emuge C3258F01.0331 Tap Plug M14-1.50mm 6H Metric DIN/DIn Coolant HSSE-Powder Metal TiN

Part Number: EMUC3258F01.0331 ISO: C3258F01.0331
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$250.60
SKU: 1158820

Description

EMUGE C3258F01.0331 M14x1.50MM Cut Spiral Point Plug 4P-5P HSSE-PM TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.4330 11.00MM
Thread Pitch 1.50MM
Thread Size M14
Tap Drill Range 0.4898 12.44MM - 0.5051 12.83MM
Tap Square 0.3220
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TIN
Standards & Identification
Dimension Standard DIN/DIN
