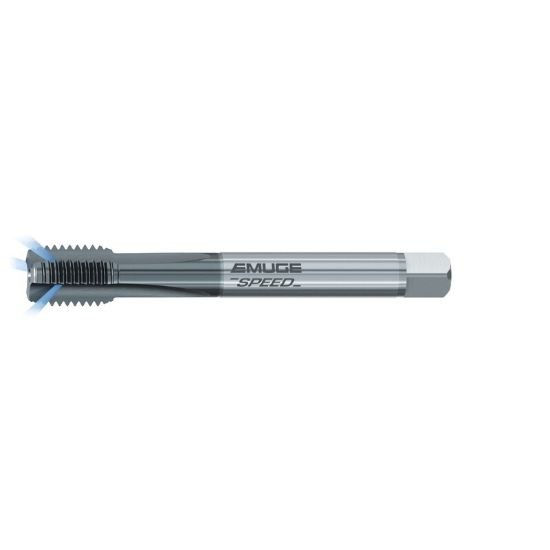

Picture of Emuge C3179401.0277 Tap Mod Bottom M10-1.25mm 6H Metric DIN/DIn Coolant HSSE TiCN

Emuge C3179401.0277 Tap Mod Bottom M10-1.25mm 6H Metric DIN/DIn Coolant HSSE TiCN

Part Number: EMUC3179401.0277 ISO: C3179401.0277

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158715
Vendor: Sussex Tool and Supply
$180.77
EMUGE C3179401.0277 M10x1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TICN
Overall Length 3.9370 100.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3810 9.68MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.25MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M10
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Tap Square 0.2860
Tap Chamfer 2.0P-3.0P
