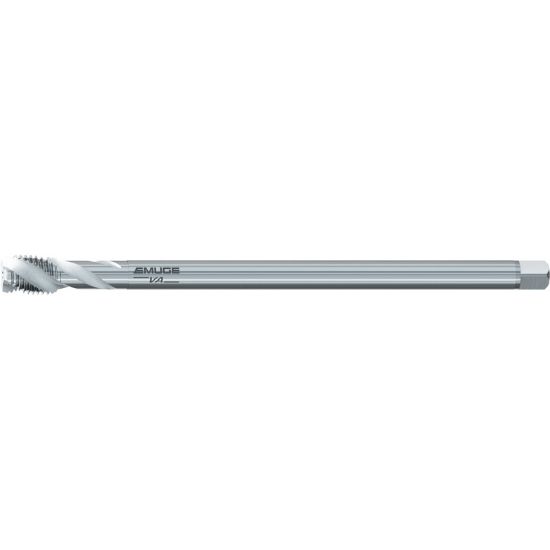

EMUGE C2503000.0100 Tap Mod Bottom M10-1.50MM 6H Metric DIN/DIN HSSE

ISO: C2503000.0100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC2503000.0100
Delivery date: 3-5 days
$120.07

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Size M10
Thread Type Metric
Thread Limit 6H
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Thread Pitch 1.50MM
Tool Material Steel
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 7.8740 200.00MM
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
