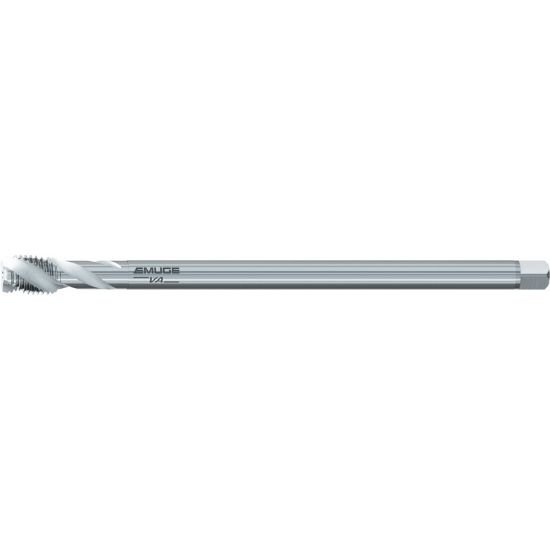

Picture of Emuge C2503000.0100 Tap Mod Bottom M10-1.50mm 6H Metric DIN/DIn HSSE Pulley Long

Emuge C2503000.0100 Tap Mod Bottom M10-1.50mm 6H Metric DIN/DIn HSSE Pulley Long

Part Number: EMUC2503000.0100 ISO: C2503000.0100
Looking for alternatives…
Find a drill for this tap M10 × 1.50MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157374
Vendor: Sussex Tool and Supply
$141.23

Description

EMUGE C2503000.0100 M10x1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 7.8740 200.00MM
Shank/Pilot Dia 0.3810 9.68MM
Thread Pitch 1.50MM
Thread Size M10
Tap Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Square 0.2860
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
