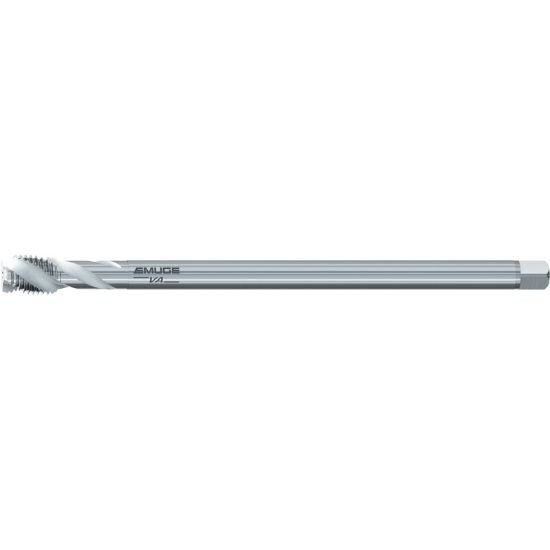

Picture of Emuge C2503000.0060 Tap Mod Bottom M6-1.00mm 6H Metric DIN/DIn HSSE Pulley Long

Emuge C2503000.0060 Tap Mod Bottom M6-1.00mm 6H Metric DIN/DIn HSSE Pulley Long

Part Number: EMUC2503000.0060 ISO: C2503000.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157372
Vendor: Sussex Tool and Supply
$91.11
EMUGE C2503000.0060 M6x1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Overall Length 6.2992 160.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1770 4.50MM - #16
Type Of Tool Tap
Length Type LONG
Performance Rating High Performance
Thread Pitch 1.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M6
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Tap Chamfer 2.0P-3.0P
