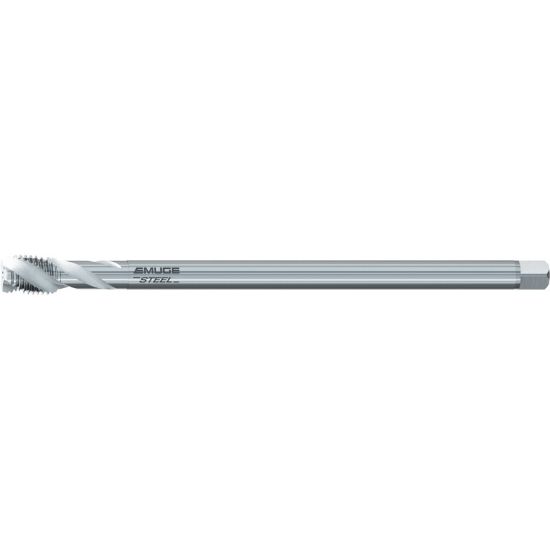

EMUGE C2501000.0118 Tap Mod Bottom M18-2.50MM 6H Metric DIN/DIN HSSE

ISO: C2501000.0118

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC2501000.0118
Delivery date: 3-5 days
$336.01

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Size M18
Thread Pitch 2.50MM
Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 9.8425 250.00MM
Length Type Long
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Thread Type Metric
Shank/Pilot Dia 0.5510 14.00MM
Tap Square 0.3600
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
