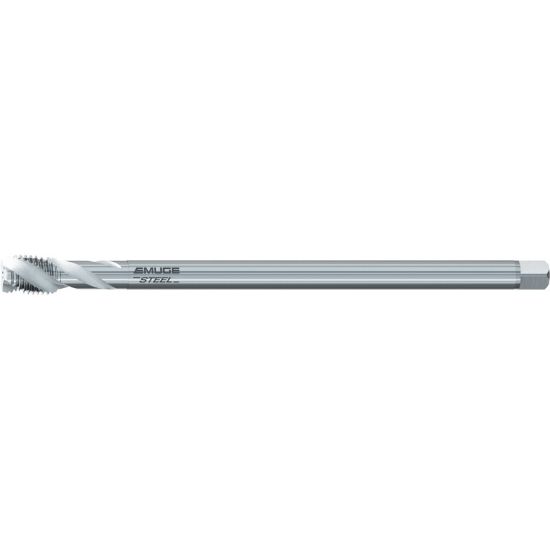

EMUGE C2501000.0112 Tap Mod Bottom M12-1.75MM 6H Metric DIN/DIN HSSE

ISO: C2501000.0112

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC2501000.0112
Delivery date: 3-5 days
$153.05

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Thread Type Metric
Overall Len 8.8189 224.00MM
Thread Pitch 1.75MM
Machine Side Connection Type Tap Collet
Tool Material Steel
Flute Direction R - Right
Thread Limit 6H
Tap Square 0.2750
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Tap Chamfer 2.0P-3.0P
Thread Size M12
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
