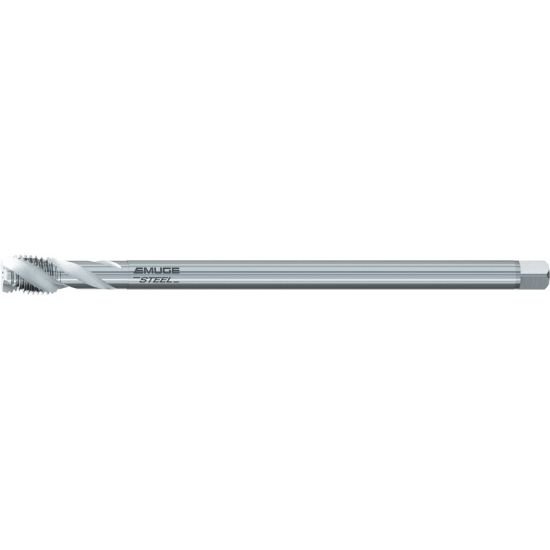

Picture of Emuge C2501000.0100 Tap Mod Bottom M10-1.50mm 6H Metric DIN/DIn HSSE Pulley Long

Emuge C2501000.0100 Tap Mod Bottom M10-1.50mm 6H Metric DIN/DIn HSSE Pulley Long

Part Number: EMUC2501000.0100 ISO: C2501000.0100
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$141.08
SKU: 1157361

Description

EMUGE C2501000.0100 M10x1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 7.8740 200.00MM
Shank/Pilot Dia 0.3810 9.68MM
Thread Pitch 1.50MM
Thread Size M10
Tap Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Square 0.2860
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
