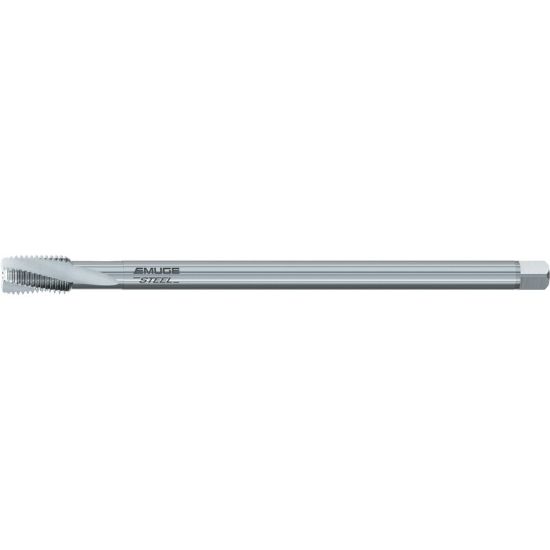

EMUGE C2461000.0118 Tap Bottoming M18-2.50MM 6H Metric DIN/DIN HSSE

ISO: C2461000.0118

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC2461000.0118
Delivery date: 3-5 days
$354.27

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Shank/Pilot Dia 0.5510 14.00MM
Tap Square 0.3600
Flute Direction R - Right
Tap Type Bottoming
Thread Size M18
Thread Pitch 2.50MM
Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Machine Side Connection Type Tap Collet
Thread Type Metric
Dimension Standard DIN/DIN
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 9.8425 250.00MM
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
