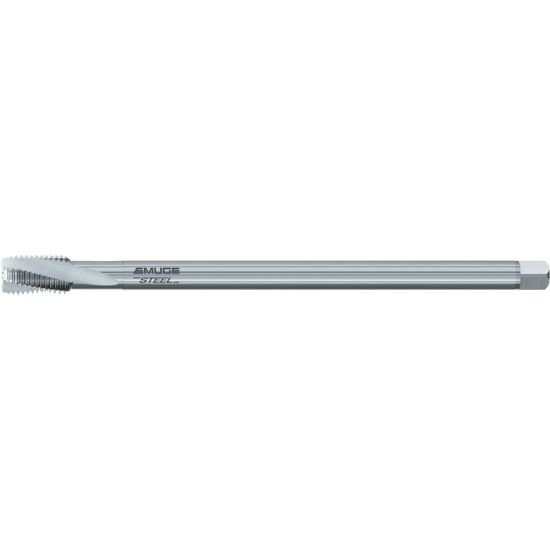

Picture of Emuge C2461000.0112 Tap Bottoming M12-1.75mm 6H Metric DIN/DIn HSSE Pulley Long

Emuge C2461000.0112 Tap Bottoming M12-1.75mm 6H Metric DIN/DIn HSSE Pulley Long

Part Number: EMUC2461000.0112 ISO: C2461000.0112

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157440
Vendor: Sussex Tool and Supply
$163.40
EMUGE C2461000.0112 M12x1.75MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Overall Length 8.8189 224.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3540 8.99MM
Type Of Tool Tap
Length Type LONG
Performance Rating High Performance
Thread Pitch 1.75MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M12
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Tap Square 0.2750
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
