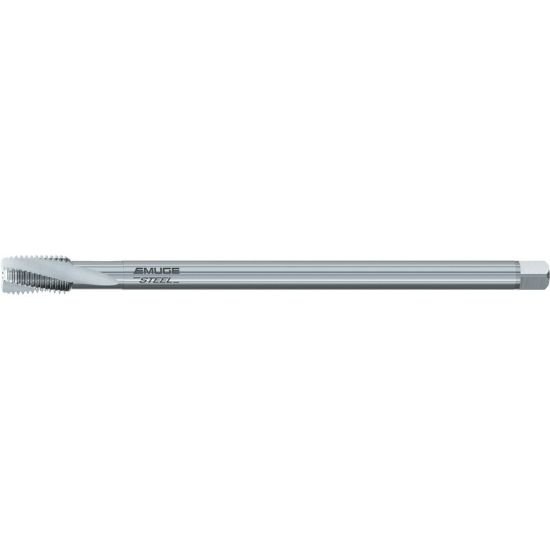

Picture of Emuge C2461000.0100 Tap Bottoming M10-1.50mm 6H Metric DIN/DIn HSSE Pulley Long

Emuge C2461000.0100 Tap Bottoming M10-1.50mm 6H Metric DIN/DIn HSSE Pulley Long

Part Number: EMUC2461000.0100 ISO: C2461000.0100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157439
Vendor: Sussex Tool and Supply
$132.44
EMUGE C2461000.0100 M10x1.50MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Overall Length 7.8740 200.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Type Of Tool Tap
Length Type LONG
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M10
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Square 0.2860
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
