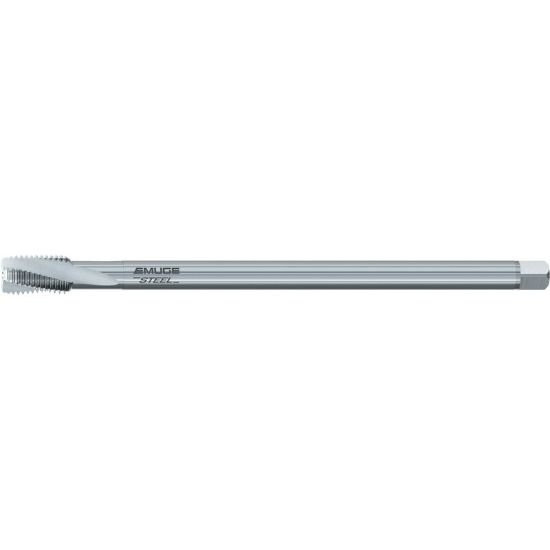

Picture of Emuge C2461000.0060 Tap Bottoming M6-1.00mm 6H Metric DIN/DIn HSSE Pulley Long

Emuge C2461000.0060 Tap Bottoming M6-1.00mm 6H Metric DIN/DIn HSSE Pulley Long

Part Number: EMUC2461000.0060 ISO: C2461000.0060
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$114.01
SKU: 1157437

Description

EMUGE C2461000.0060 M6x1.00MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 6.2992 160.00MM
Shank/Pilot Dia 0.1770 4.50MM - #16
Thread Pitch 1.00MM
Thread Size M6
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
