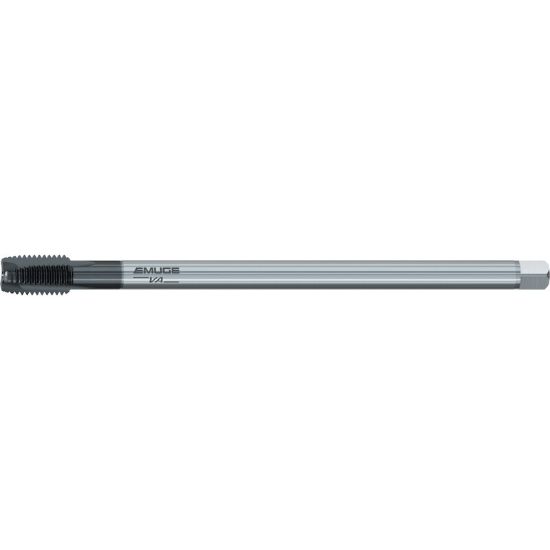

EMUGE C220C300.0112 Tap Plug M12-1.75MM 6H Metric DIN/DIN HSSE GLT-1

ISO: C220C300.0112

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC220C300.0112
Delivery date: 3-5 days
$152.29

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Coating GLT-1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Dimensional Specifications
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Tool Material Steel
Tap Chamfer 4P-5P
Thread Pitch 1.75MM
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Thread Type Metric
Overall Len 8.8189 224.00MM
Tap Type Plug
Thread Size M12
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
