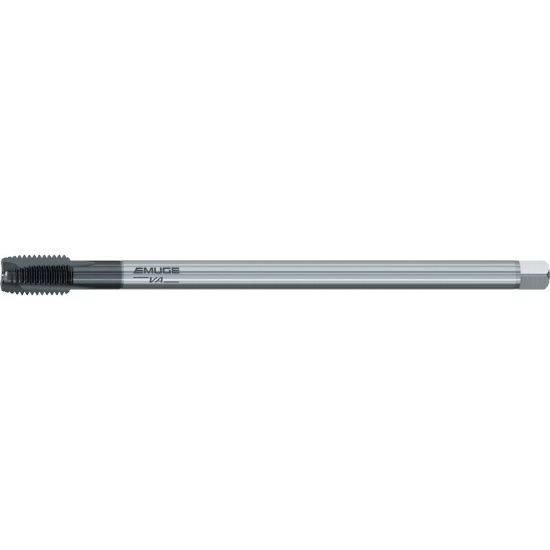

EMUGE C220C300.0100 Tap Plug M10-1.50MM 6H Metric DIN/DIN HSSE GLT-1

ISO: C220C300.0100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC220C300.0100
Delivery date: 3-5 days
$130.97

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Coating GLT-1
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Package Size 1
Made In USA No
Shipping State Massachusetts
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Tap Chamfer 4P-5P
Thread Type Metric
Flute Direction STRAIGHT
Tap Type Plug
Thread Size M10
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 7.8740 200.00MM
Length Type Long
Thread Pitch 1.50MM
Thread Limit 6H
Tap Square 0.2860
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Style Cut Spiral Point
Dimension Standard DIN/DIN
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
